Main Differences between: Radiation Glass Tempering Furnace, Top Convection Glass Tempering Furnace and Full Convection Glass Tempering Furnace?

RADIATION FURNACE:

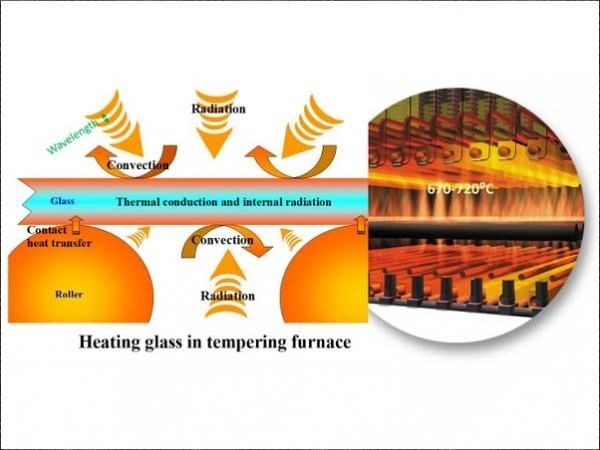

Radiation glass tempering furnace refers to the type of tempered glass machine that heat glass directly by radiation with heating elements. The machine can be used on: online Low-E glass, ultra clear glass, screen printed glass, patterned glass, colored glass, and clear glass, etc..

NOTE: HEATING TIME = 60s to 65s × Thickness of glass.

CONVECTION FURNACE:

Top Convection glass tempering furnace refers to the type of tempered glass machine that use primarily convection heating on upper side of glass while heating the bottom side by radiation. In addition to all types of glass that can be tempered in radiation ovens, the top convection glass tempering furnace can also temper off-line Low-E glass,

NOTE: HEATING TIME = 45s TO 60s×Thickness.

FULL CONVECTION FURNACE:

Full Convection glass tempering furnaces are the ones that use convection heating method on both upper and bottom sides of glass. All the glass types mentioned above can be tempered by full convection glass tempering machine.

NOTE: HEATING TIME = 30s to 45s× Thickness.

PRODUCTION:

Radiation furnace<Top Convection furnace<Full

Convection Furnace.

QUALITY TEMPERED GLASS:

Radiation furnace <Top Convection furnace <Full Convection Furnace.
